Product Description

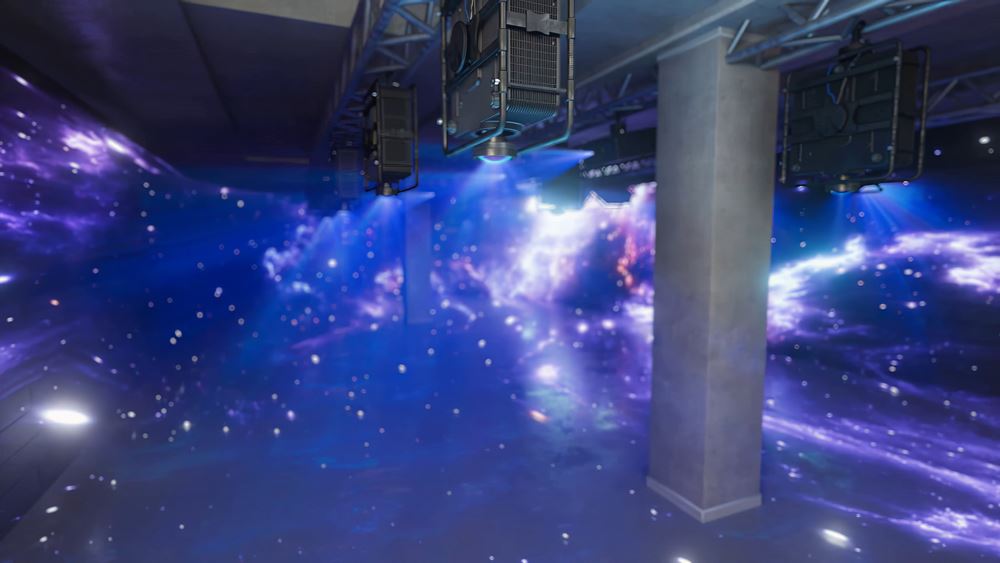

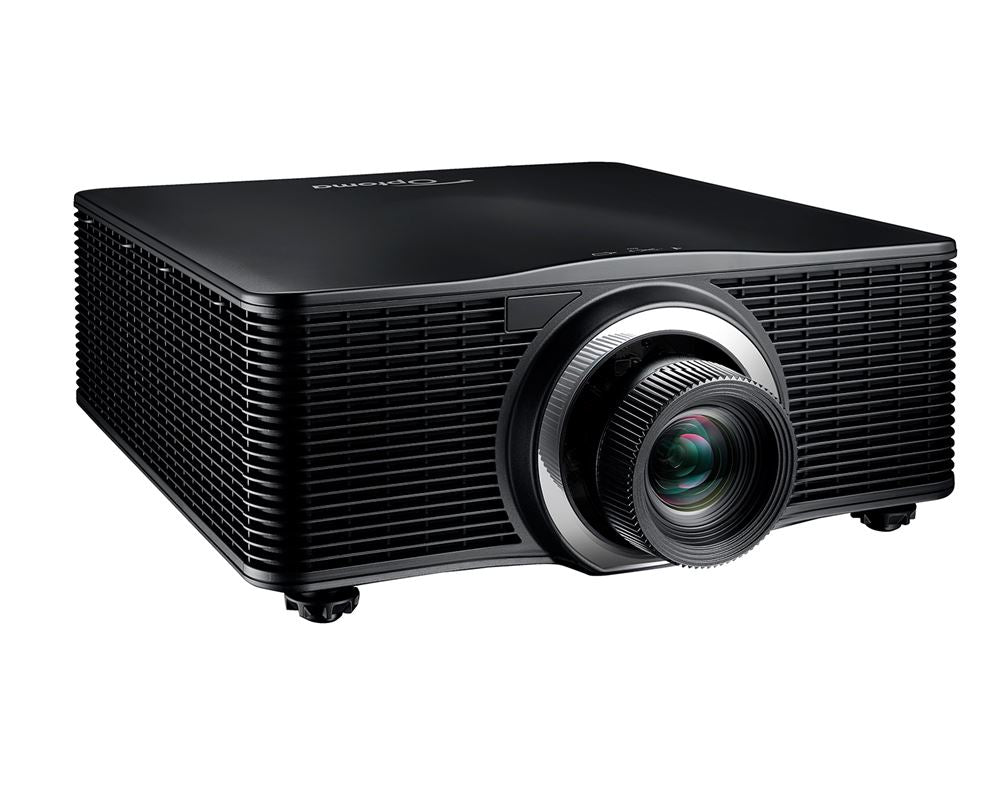

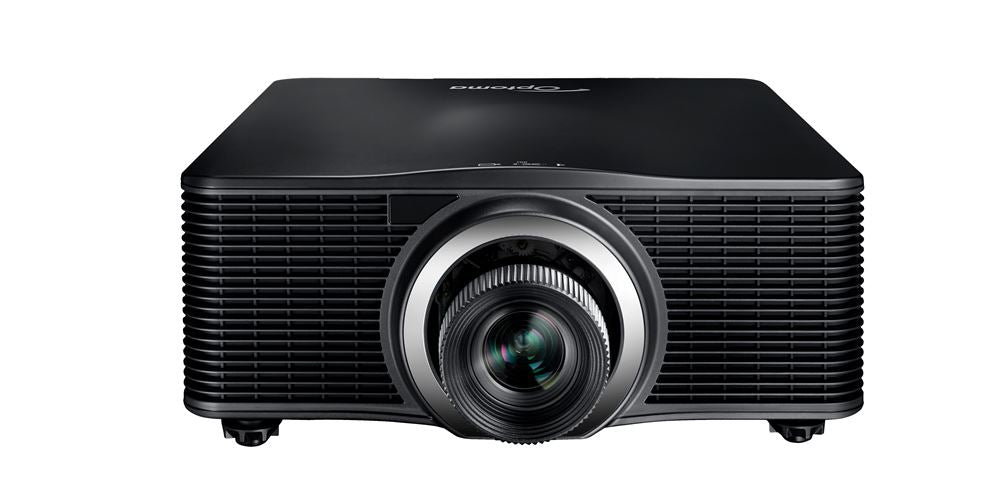

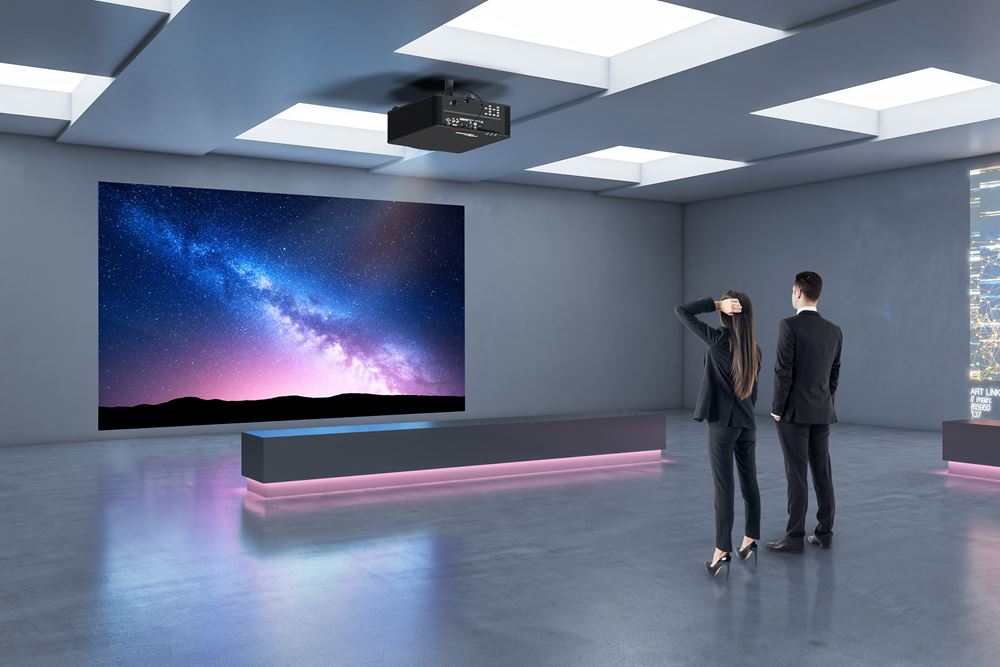

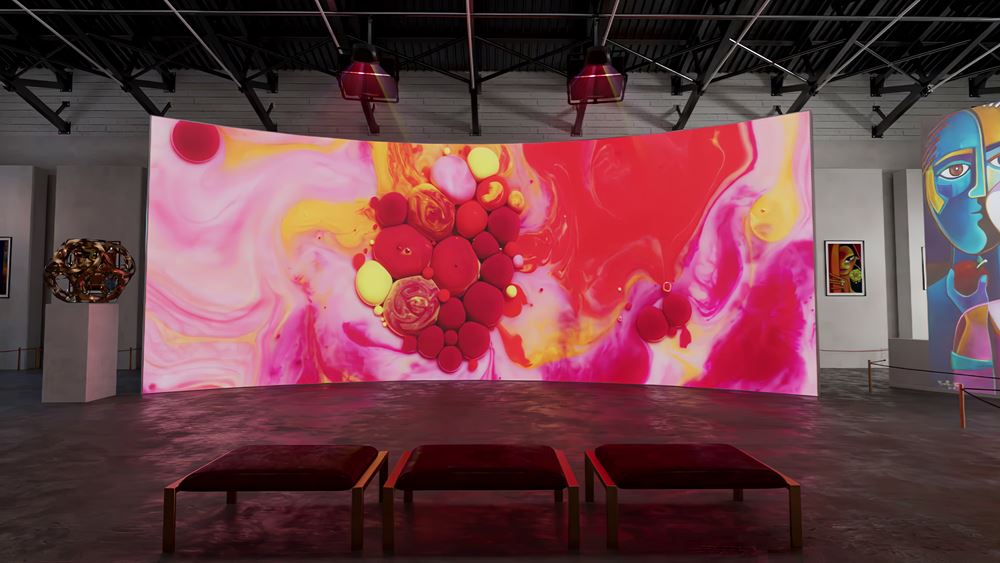

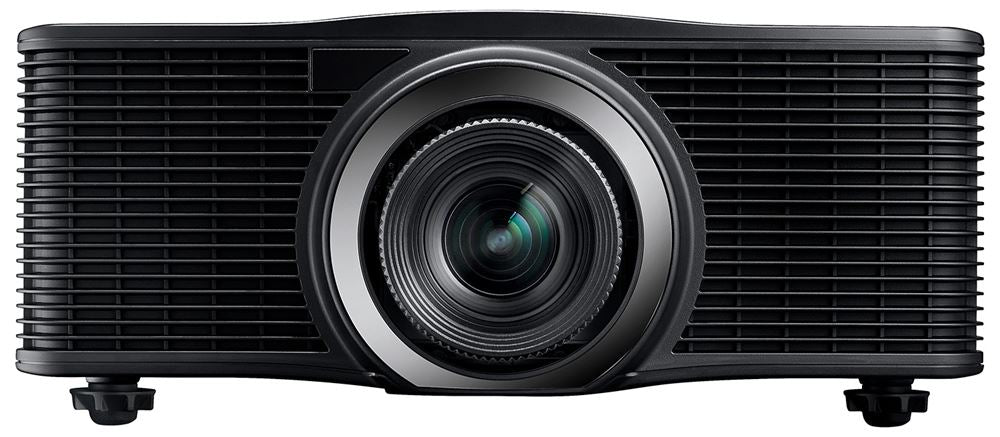

The Optoma ProScene ZU1700 is an ultra bright professional WUXGA laser projector designed for high-end installations, including entertainment venues, exhibitions, digital signage, multi-projector setups, and dome projection applications. With 17,000 lumens, WUXGA resolution, and eight interchangeable lens options, it provides flexible performance for complex professional projection environments.
Part of Optoma’s Ultra Bright Series, the ZU1700 features DuraCore Laser technology, 4K HDR compatibility, pure engine video processing, color matching, and up to 30,000 hours of laser life. It also supports 24/7 operation and includes an IP5X-rated dust-resistant optical engine, built-in redundancy mode, and a modular metal chassis for dependable performance in demanding installations.
KEY FEATURES
- Ultra bright professional WUXGA DLP laser projector
- 14,400 lumens brightness
- WUXGA resolution: 1920 x 1200
- DuraCore Laser light source
- Up to 30,000 hours laser life
- 4K HDR compatible
- Seven interchangeable lens options including an ultra short throw lens
- Integrated warping and edge blending processor
- IP6X dust-resistant optical engine
- 24/7 operation capability

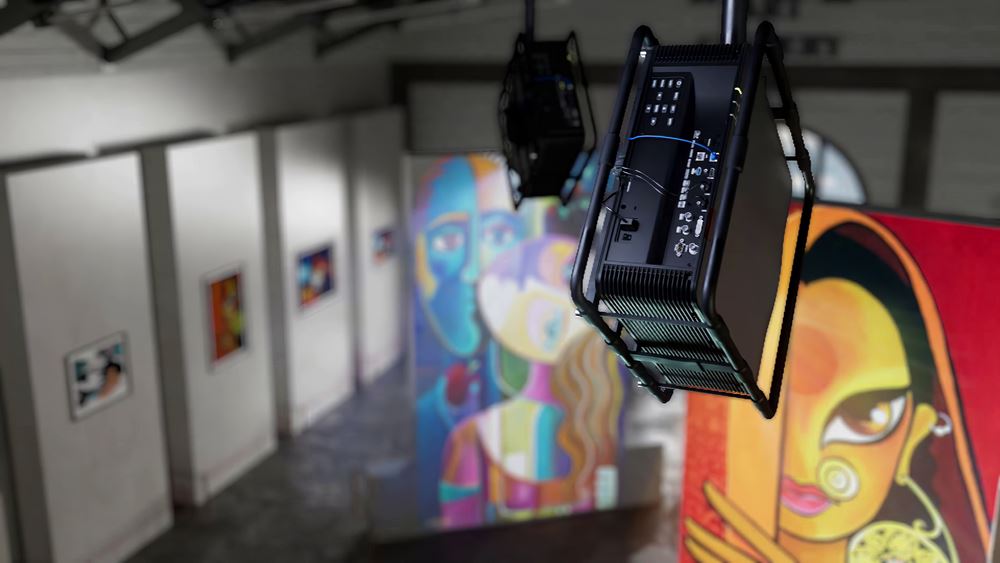

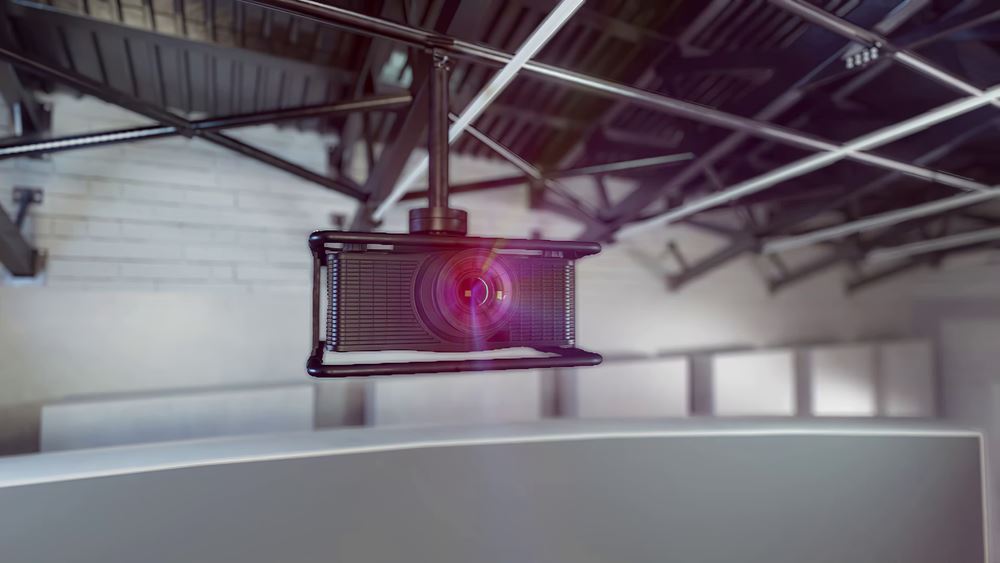

- 360° and portrait projection support
- Full 3D
- HDBaseT, HDMI, DVI ports
Features
High brightness WUXGA DLP laser projector
14,400 lumens
DuraCore laser technology
Up to 30,000 hours laser light source
Dust resistant
Independently tested, IP6X certified for total reliability
Installation flexibility
7 interchangeable lens options including an ultra short throw lens
Integrated warping and edge blending processor
Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.
Extreme Black
Extreme black enables the laser diodes to completly turn off when a full black image frame is detected. This feature is perfect for situations where a total image blackout is required.
Specification
Display/image
Display technologyDLP®
ResolutionWUXGA (1920x1200)
Brightness14,400 lumens
ANSI brightness12,000
Contrast ratio2,000,000:1
Native aspect ratio16:10
Aspect ratio - compatible4:3,16:9,16:10
Keystone correction - horizontal+/-20°
Keystone correction - vertical+/-20°
Uniformity90%
Screen sizeDependent on lens
Lamp info
Light source typeLaser
LASER life30,000 hours
Optical
Throw ratioDependent on lens
Projection distanceDependent on lens
Lens options BX-CTA16: 0.36:1
BX-CTA17: 0.65 ~ 0.75:1
BX-CTA15: 0.75 ~ 0.95:1
BX-CAA01: 0.95 ~ 1.22:1
BX-CAA06: 1.22 ~ 1.52:1
BX-CAA03: 1.52 ~ 2.92:1
BX-CTA13: 2.9 ~ 5.5:1
BX-CTA17: 0.65 ~ 0.75:1
BX-CTA15: 0.75 ~ 0.95:1
BX-CAA01: 0.95 ~ 1.22:1
BX-CAA06: 1.22 ~ 1.52:1
BX-CAA03: 1.52 ~ 2.92:1
BX-CTA13: 2.9 ~ 5.5:1
Lens shift Yes - see product downloads
for more information
for more information

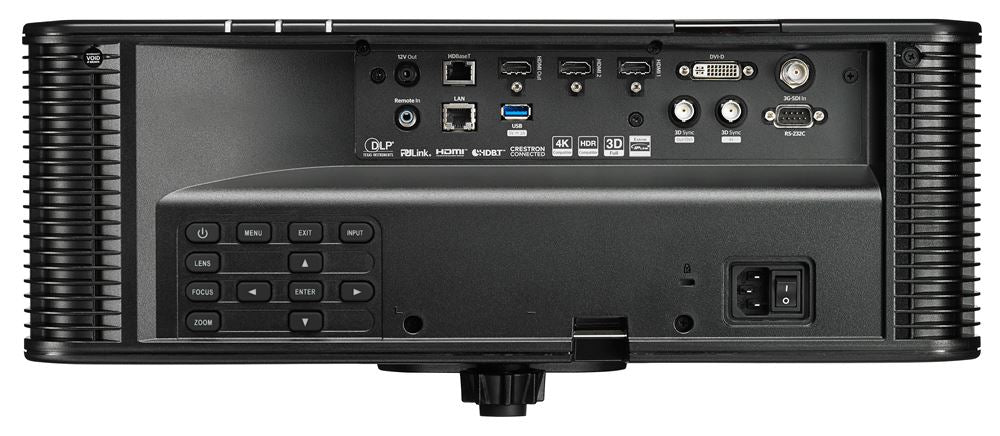

Connectivity
Inputs2 x HDMI, 1 x 3D sync, 1 x DVI-D, 1 x HDBaseT, 1 x 3G-SDI
Outputs1 x 3D sync, 1 x HDMI
Control1 x RS232, 1 x Wired remote, 1 x USB-A power 2A, 1 x 12V trigger, 1 x RJ45
General
Noise level (min)37dB
Noise level (max)39dB
PC compatibilityHD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
2D compatibilityPAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
3D compatibilitySide-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3DFull 3D
SecuritySecurity bar, Kensington Lock
IP ratingIP6X
OSD / display languages11 languages: Dutch, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Chinese (simplified), Spanish
24/7 operationYes
360° operationYes
Operating conditions5°C~40°C/41°F~104°F, max altitude M/0ft, max humidity 10-85%

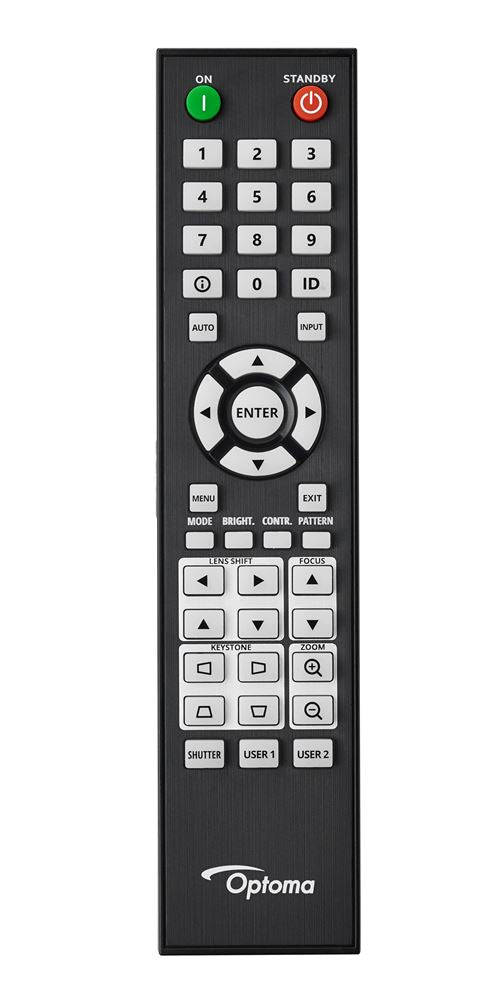

Remote controlWired ProAV remote
In the boxAAA Battery, AC power cable 3M, Lens cover, VGA cable 1.8m, User manual CD, Quick start guide
Optional wireless modelsQuickCast Bundle, QuickCast starter kit
Networking
LANYes
Power
Power supply100 - 240V, 50 - 60Hz
Power consumption (standby)0.5W
Power consumption (min)465W
Power consumption (max)955W
Weight and dimensions
Dimensions (W x D x H)19.06" x 20.83" x 8.19"
Gross weight59.52 lbs
Net weight46.3 lbs
UPC796435 44 609 3
