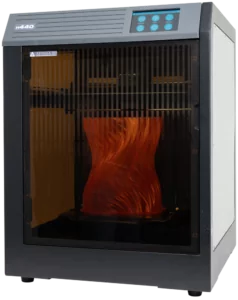

New H440 3D Printer
The new Afinia H440 3D printer is the ultimate in affordability, reliability, and ease of use. It’s perfect for educators, hobbyists, and engineers who want a fast and easy out-of-the-box experience.
New and improved features
-
Large build volume – 7.9 x 7.9 x 7.9 inches
-
WIFI – transfer your print job wirelessly from a computer or mobile app
-
Touch screen control – conveniently perform basic operations without a computer
-
Better resolution – with layer thickness as fine as 0.1mm
-
Power failure protection – resume printing from where a print was stopped due to power failure
Additional features for safe & easy 3D printing
-
Automatic nozzle height detection – helps ensure your print adheres securely to the print bed
-
Software-assisted leveling – compensates for warped or imperfect print surfaces to help you achieve a successful print
-
HEPA air filtration – reduces 3D printing air emissions for a safer 3D printing environment
Start 3D printing in no time
The Afinia H440 is shipped fully assembled, ready to use, and with all the materials you’ll need*, so you can start printing in minutes. Just install the software (compatible with Windows 7 or later, Mac OS, and iOS 8 or later) and transfer your print wirelessly or via USB.
Specifications
Printing
| Print technology: |
MEM (Melted Extrusion Modeling) |
| Extruder: |
Single |
| Nozzle Diameter: |
0.4 mm |
| Buildplate Max Temperature: |
100°C |
| Connectivity: |
USB Cable and WIFI |
| Touch Screen: |
4.3” LCD Screen |
| Build Volume: |
200 x 200 x 200 mm (XYZ)
7.9 x 7.9 x 7.9 in |
| Calibration and Leveling: |
Automatic |
| Layer Resolution: |
0.1 / 0.15 / 0.2 / 0.25 / 0.3 / 0.35 mm |
| Buildplate Surface: |
Reversible Heated (Perforated / Flex) |
| Dual Filtration System: |
HEPA and Activated Carbon Filter |
Print Resume On
Power Interrupt: |
Yes |
Pause to Change
Filament Type: |
Yes |
Out of Filament
Detection: |
Yes |
| Filament: |
ABS, ABS+, PLA, TPU and 3rd Party |
| Filament Diameter: |
1.75 mm |
| Filament Spool Compatibility: |
500g, 1kg or 2kg |
| Operating Sound: |
47 db Ultra Quiet |
Software
| Software: |
Afinia Studio 2.6.39 |
| Supported OS: |
Windows 7 or later Mac OS X, iOS8 or later |
| Supported File Formats: |
tsk, .up3, .usp, .stl, .obj, .3mf, .ply, .off, .3ds |
|
Special Features
| – Preview Support Structures |
| – Print Queue |
| – Power Loss Recovery |
| – Door Open Pause Protection |
Dimensions
| Machine: |
487 x 423 x 550 mm
19 x 17 x 22 in |
| Net Weight: |
20 kg 49 lbs |
Environment
| Operating Ambient Temperature: |
15-30°C, 20-70% RH non |
Requirements
| Power Input: |
110 – 240 VAC, 50-60 Hz |
*What’s Included:
- Afinia H440 3D Printer
- Reversible platform (glass and perf surfaces)
- 500g spool of filament (1.75mm)
- H440 Quick Start Guide
- Tool kit: USB cable, nozzle wrench, gloves, scraper, pliers, and hex wrench
