Product Description

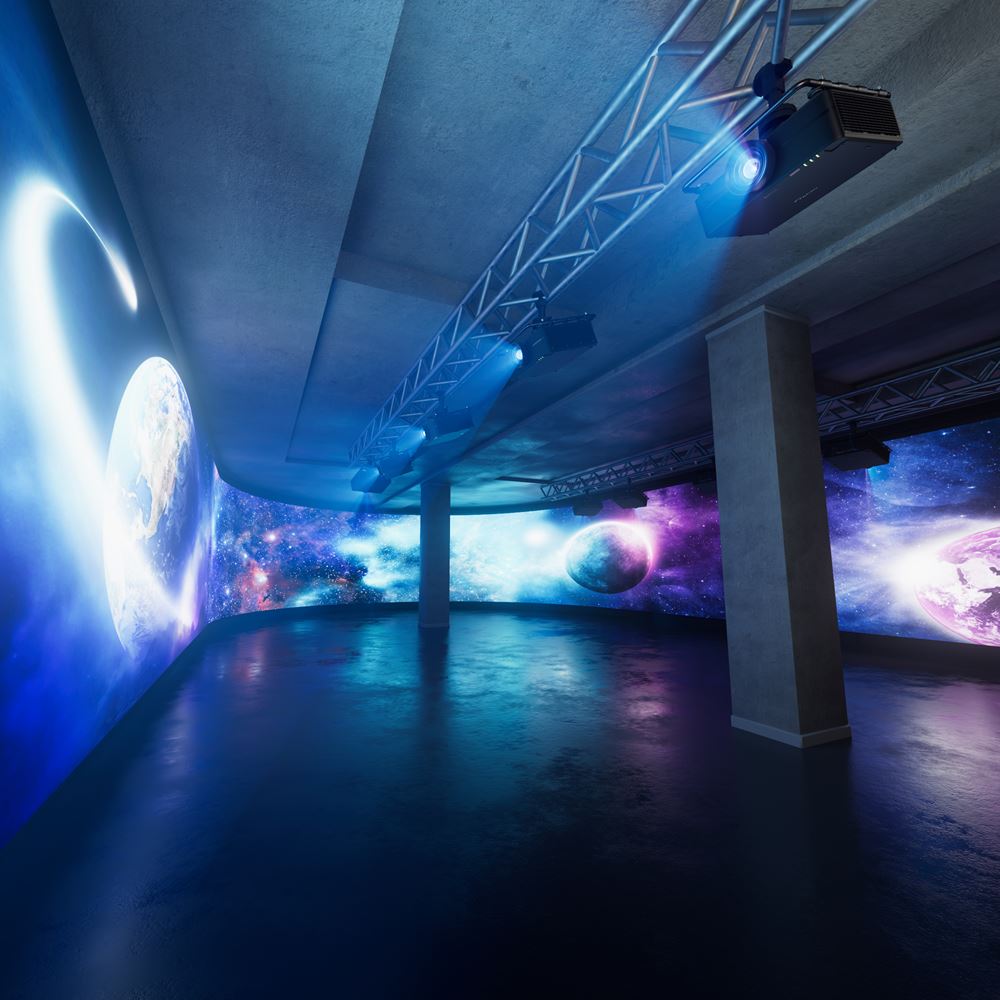

The Optoma ProScene ZU920TST is a high-brightness professional short throw laser projector designed for demanding installation environments. With 9,800 lumens, WUXGA resolution, 4K and HDR compatibility, and a DuraCore laser light source, it delivers powerful projection performance for digital signage, edge blending, projection mapping, simulation, and immersive installations.
Built for flexible professional setup, the ZU920TST features motorized zoom and focus, full motorized lens shift, HDBaseT, LAN control, portrait projection, 360-degree operation, integrated warping and edge blending, and a dust-resistant IP5X certified optical engine for 24/7 operation.
KEY FEATURES
- 9,800 lumens brightness
- WUXGA resolution: 1920 x 1200
- 4K and HDR compatible
- DuraCore laser light source
- Up to 30,000 hours laser life
- Short throw lens with 0.65:1–0.75:1 throw ratio
- Motorized zoom and focus
- Full motorized lens shift
- Vertical lens shift: +/-55%
- Horizontal lens shift: +/-25%
- IP5X dust-resistant optical engine
- Designed for 24/7 operation
- 360-degree operation support
- Portrait projection support
- Integrated warping and edge blending processor
- HDBaseT, LAN, RS232, and wired remote control
- Built-in dual 10W speakers
- Full 3D compatibility
Features
9,800 Lumen Duracore laser projector
Ultra bright for immersive installations
Full motorized lens shift
Ideal for a simple set up
Large zoom range
Motorized zoom expands placement opportunities
Long life
Delivers 30,000 hours of virtually maintenance-free operation
Four corner correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.
Integrated warping and edge blending processor
Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.
Compatible multi output graphics card with overlap function is required.*
Compatible multi output graphics card with overlap function is required.*
Control
Featuring a wide range of options you can control and monitor the projector remotely.
• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
• Extron IPLink compatible
Allows for easy installation with Extron control systems
• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
• Extron IPLink compatible
Allows for easy installation with Extron control systems
Specification
Display/image
Display technologyDLP®
ResolutionWUXGA (1920x1200)
Brightness9,800 lumens
ANSI brightness8,200
Contrast ratio3,000,000:1
Contrast ratio - full on/off1,100:1
Native aspect ratio16:10
Aspect ratio - compatible4:3,16:9,16:10
Keystone correction - horizontal30°
Keystone correction - vertical30°
Uniformity95%
Screen size50" ~ 300" diagonal
Lamp info
Light source typeDuraCore Laser
LASER life30,000 hours
Optical
Throw ratio0.65:1 ~ 0.75:1
Projection distance27.56" - 653.54"
Zoom1.15
Zoom typeMotorized
Focal length (mm)9.69~11.19
Lens shiftVertical: +/-55%, Horizontal: +/-25%
Native offset50%

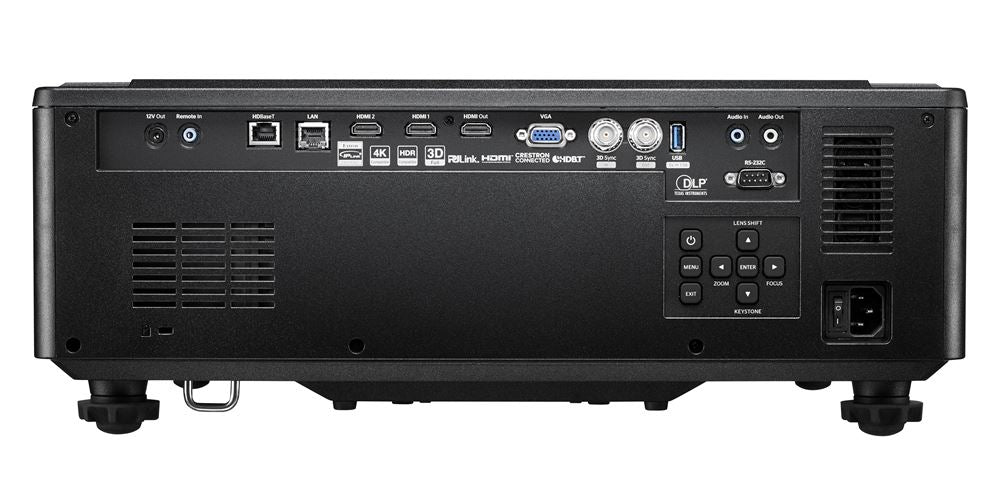

Connectivity
Inputs 1 x HDBaseT, 1 x HDMI 2.0, 1 x HDMI 2.0, 1 x VGA, 1 x 3D sync, 1 x Audio 3.5mm
Outputs 1 x HDMI 2.0, 1 x 3D sync, 1 x USB-A power 1.5A, 1 x Audio 3.5mm
Control 1 x 12V trigger, 1 x Wired remote, 1 x RJ45, 1 x RS232
General
Noise level (min)36dB
Noise level (max)38dB
SecuritySecurity bar, Kensington Lock
OSD / display languages9 languages: English, French, German, Italian, Portuguese, Russian, Chinese (simplified), Spanish, Chinese (traditional)
24/7 operationYes
360° operationYes

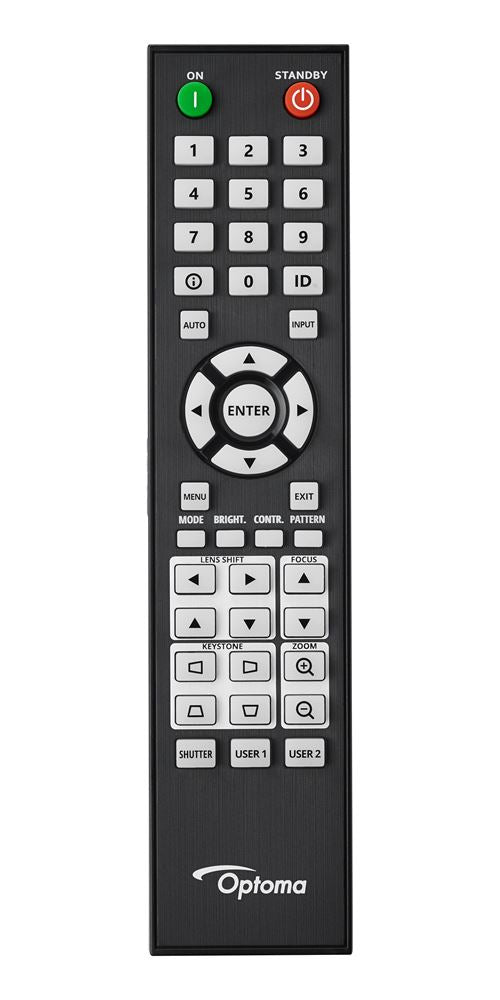

Remote controlBacklit ProAV remote
Speaker count2
Watts per speaker10W
Networking
LAN - wireless networkingNo
LANYes
Power
Power supplyAC 90 – 264V 50/60 Hz
Power consumption (min)260W
Power consumption (max)505W
Weight and dimensions
Dimensions (W x D x H)19.13" x 16.43" x 6.93"
Gross weight38.58 lbs
Net weight30.86 lbs
UPC796435 44 590 4
